GUJCON-CRF
GUJCON-CRF is specially engineered 18 mm length Nylon 6 fiber for providing secondary fiber reinforcement in RCC & PCC.
A breakthrough in secondary reinforcement.
Development based on extensive Research and Application trials.
Unique and state-of-the-art next generation products for rendering long lasting solutions to some of the teething problems of construction and infrastructure industries.
Superior to other secondary reinforcement Fibre products.
Reliable secondary reinforcement material.
Sr. no. |
Property |
GUJCON-CRF |
1 |
Material |
100% Virgin Nylon 6 fiber |
2 |
Fiber Cross Section |
Trilobal |
3 |
Fiber Length |
18mm |
4 |
Denier /Filament |
3 |
5 |
Sp. Gravity |
1.13 |
6 |
Color |
Brilliantly Centigrade |
7 |
Melting Point |
220 degree centigrade |
8 |
Chemical Resistance |
Very good against alkalis hydrocarbons |
Test Methods
- Fiber cross section- scanning electron microscope
- Fiber length - ISO: 6989: 1981
- Denier /Filament - ASTM D: 1577: 01
- Melting Point - Differential Scanning Calorimeter
Application
- RCC & PCC - Slabs, beams, columns, lintels
- Pavement, flooring

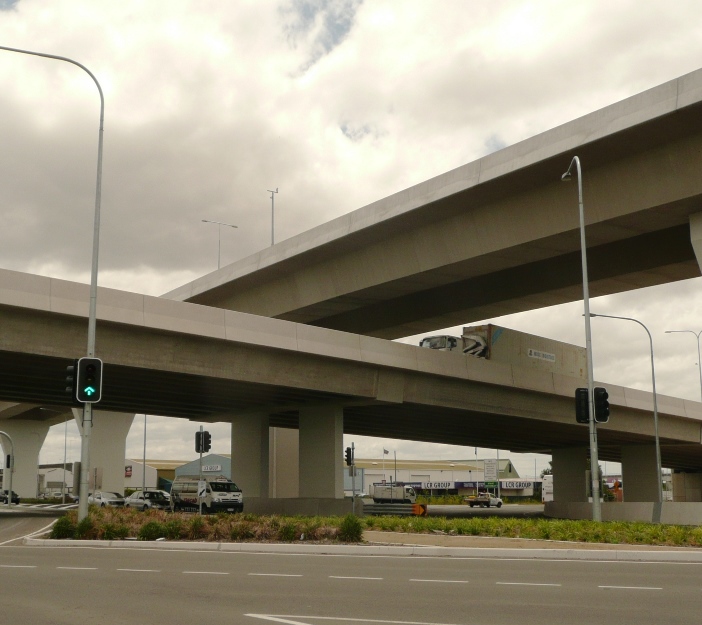

- Roads, Bridges, Airport runways
- Water retaining structures

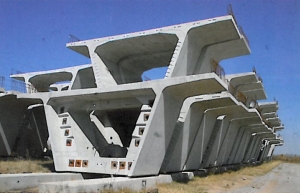

- Pre-cast structures
Advantages
- Reduction in plastic shrinkage and long term - temperature shrinkage cracking
- Improves homogeneity and workability of concrete mix
- Reduces water permeability
- Increases durability of concrete
- Enhances Compression, flexural and impact strength of concrete
Dosage
- Use 100 gm GUJCON - CRF / 50 kg cement bag
Direction for use
Manual mixing
- For each 50 kg cement bag, sprinkle 100 gm GUJCON - CRF in required quantity of water in bucket / container and stir till fibers are uniformly dispersed.
- Pour the entire water + fiber content of bucket / container in to mixture of cement, sand and aggregate and mix thoroughly till homogeneous concrete mix is obtained.
Mixing in Drum Mixer
- For each 50 kg cement bag, sprinkle 100 gm GUJCON - CRF in required quantity of water in bucket! container and stir till fibers are uniformly dispersed.
- Prepare required dry mix of cement, sand and aggregate in site Mixer Drum. Pour entire water + fiber content from bucket! container in to Mixer Drum and rotate for few minutes till homogeneous concrete mix is obtained.
